NST VMX88L installation DSP processor

NST VMX88LNST VMX88L

Contact us for prices

VMX88L delivers all the benefits and experience of our live sound filters and dynamics algorithms in an installation product. The 8 analogue inputs have individual compressors, as well as a 24dB/Oct high pass filter, 8 bands of parametric EQ and up to 1.3 seconds of delay. All of the 8 analogue outputs have 16 bands of parametric EQ, 48dB/Oct high and low pass filters, up to 1.3 seconds of delay as well as our high performance, two-stage PXL limiters for high performance loudspeaker protection.

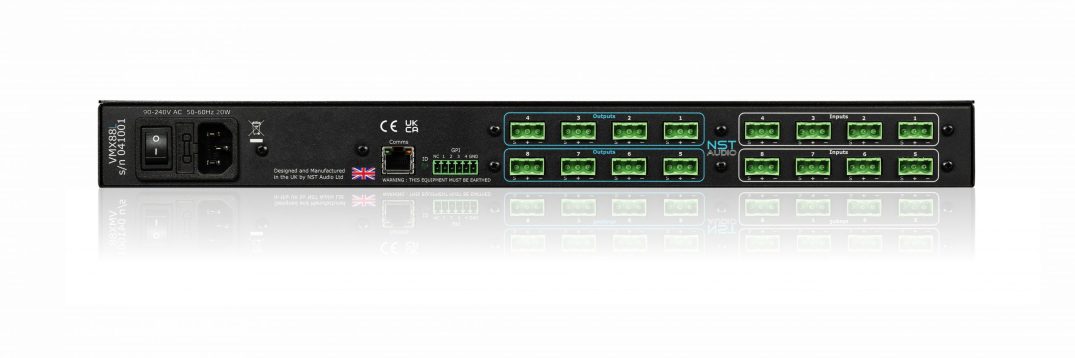

All analogue audio connections are on Phoenix-type 3-pin 5.08mm pitch connectors. The 4 GPI connections allow configurable actions such as fire alarm mutes and preset recalls. Up to 30 presets can be stored with recall options allowing selective recall combinations of input, matrix and output sections.

Our D-Net control software for PC, Mac and iPad gives you complete control over ethernet and wifi. The VMX88L is also fully compatible with our VR1 PoE remote control panel for simple, flexible user control. Control via third party systems such as Crestron™ is available via our simple ethernet control protocol.



VMX88L Technical Specifications

Analogue Inputs – 8

Electronically Balanced, Phoenix connectors
CMRR : >70dB @ 1kHz Maximum Level >20dBu
Dynamic Range >120dB (20Hz – 20kHz A-weighted)
Input Impedance : 10kΩ Balanced

Input Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Input Delay (per channel) : 0 to 1.3s in 10.4uS steps
Input Compressor (per channel) : Threshold (-30 to +22 dBu), Attack, Release, Ratio, Soft-Knee
Input Parametric EQ (per channel) : 8 bands – parametric, low shelf, high shelf, notch, band-pass
Input Dynamic EQ (per channel) : 2 bands – parametric/low shelf/high shelf, boost/cut above/below, threshold, ratio, attack, release
Input High-Pass Filter (per channel) : Up to 24dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)

Analogue Outputs – 8

Electronically Balanced, Phoenix connectors
Maximum Level >20dBu
Dynamic Range >119dB (20Hz – 20kHz A-weighted)
Source Impedance : <60Ω

Performance

Processing [96kHz]
Frequency Response (20Hz to 20kHz) : +/-0.05dB
THD + N (-10dB @ 1kHz) : 0.001%
Latency : 0.427ms (in to out, analogue at 96kHz)

Routing Inputs to Outputs: Full matrix mixer

Output Parametric EQ (per channel): 16 bands – parametric, low shelf, high shelf, notch, band-pass
Output High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Output Delay (per channel) : 0 to 1.3s in 10.4uS steps
Output Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option

Presets : Up to 30

Comms : 100Mbps Ethernet on rear panel (RJ45 connector)

Power Requirements

3-pin IEC input, fused
90-250VAC, 50-60Hz < <20W Dimensions Height : 44mm (1.75inch) 1U Depth : 170mm (6.75 inches) Width : 482mm (19 inches) Weight Net : 2.2kg Shipping : 3.4kg Due to continuing product improvement the above specifications are subject to change.
