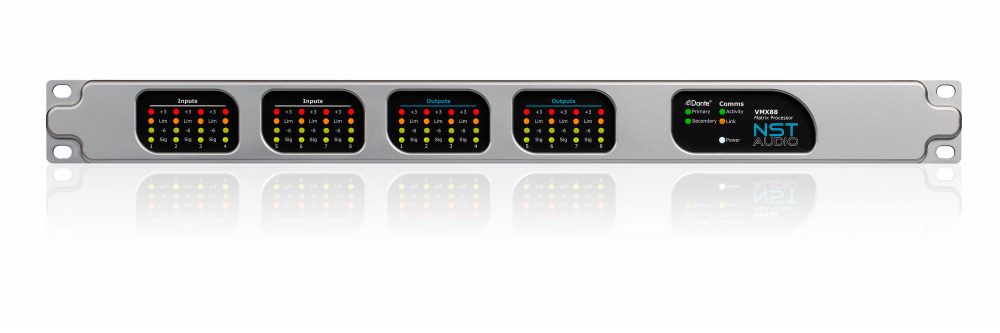

NST VMX88 installation DSP processor

Contact us for prices

VMX88 delivers all the benefits and experience of our live sound filters and dynamics algorithms in an installation product. The 8 analogue inputs have individual compressors, as well as a 24dB/Oct high pass filter, 8 bands of parametric EQ and up to 1.3 seconds of delay. The full matrix mixer allows mixing of not just the analogue inputs but also 8 channels of Dante networked inputs to any output channel. Audio channels can be routed to the 8 channels of Dante network outputs from multiple stages in the audio chain to give flexibility in system design.

All of the 8 analogue outputs have 16 bands of parametric EQ, 48dB/Oct high and low pass filters, up to 1.3 seconds of delay as well as our high performance, two-stage PXL limiters for high performance loudspeaker protection.

All analogue audio connections are on Phoenix-type 3-pin 5.08mm pitch connectors. The 4 GPI connections allow configurable actions such as fire alarm mutes and preset recalls. Up to 30 presets can be stored with recall options allowing selective recall combinations of input, matrix and output sections.

Our D-Net control software for PC, Mac and iPad gives you complete control over ethernet and wifi. The VMX88 is also fully compatible with our VR1 PoE remote control panel for simple, flexible user control. Control via third party systems such as Crestron™ is available via our simple ethernet control protocol.
