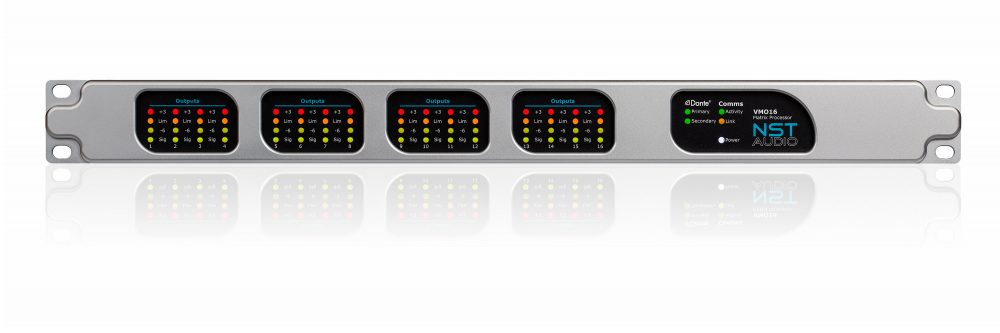

The VMO16 brings all the benefits and experience of our live sound filters and dynamics algorithms to an installation product. The 16 inputs from the Dante network go to a full 16×16 matrix mixer allowing any Dante networked inputs to be routed to any analogue output channel. All of the 16 analogue outputs have 16 bands of parametric EQ, 48dB/ Oct high and low pass filters, up to 1.3 seconds of delay as well as our high performance, two-stage PXL limiters for high performance loudspeaker protection.
All analogue audio connections are on Phoenix-type 3-pin 5.08mm pitch connectors. The 4 GPI connections allow configurable actions such as fire alarm mutes and preset recalls. Up to 30 presets can be stored with recall options allowing selective recall combinations of input, matrix and output sections.
Our D-Net control software for PC, Mac and iPad gives you complete control over ethernet amd wifi. The VMO16 is also fully compatible with our VR1 PoE remote control panel for simple, flexible user control. Control via third party systems such as Crestron™ is available via our simple ethernet control protocol.
Analogue Outputs – 16 Electronically Balanced, Phoenix connectorsMaximum Level >20dBuDynamic Range >119dB (20Hz – 20kHz A-weighted)
Frequency Response (20Hz to 20kHz) : +/-0.05dBTHD + N (-10dB @ 1kHz) : 0.0005%Latency : 0.283ms
Output Parametric EQ (per channel): 16 bands – parametric, low shelf, high shelf, notch, band-passOutput High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phaseOutput Delay (per channel) : 0 to 1.3s in 10.4uS stepsOutput Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option
Presets : Up to 30
Networked Audio : 16in / 16out Dante channels on dual redundant RJ45 connectors
Comms : 100Mbps Ethernet on rear panel (RJ45 connector)
3-pin IEC input, fused90-250VAC, 50-60Hz < 40W
Height : 44mm (1.75inch) 1UDepth : 170mm (6.75 inches)Width : 482mm (19 inches)
Net : 2.2kgShipping : 3.4kg
Due to continuing product improvement the above specifications are subject to change.
