With inputs and outputs switchable in channel pairs between analogue or AES/EBU the D48X gives you the flexibility you need to integrate into your system.
Compressors are available on every input as well as a high pass filter, 8 bands of parametric EQ, a 28 band graphic EQ, 3 bands of dynamic EQ and up to 1.3 seconds of delay. Routing to outputs can be configured to either mix-matrix mode, free-routing or several pre-configured routing options. Flexible channel linking enables quick and easy configuration of common crossover setups or customised configurations as required.
Every output channel has high and low pass filters, 16 bands of parametric EQ and up to 1.3 seconds of delay. FIR filtering is also supported. Our Predictive eXcursion Limiter (PXL) algorithm, on every output, is designed to offer the best driver protection with the lowest distortion.

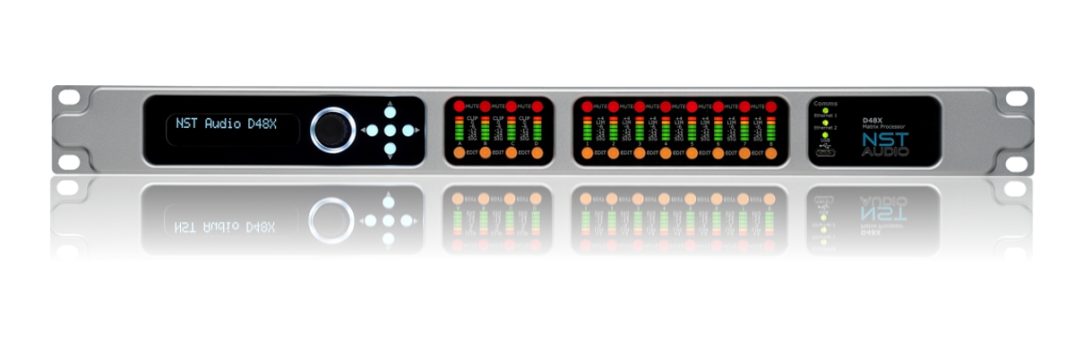

Front panel control allows instant mute of any input or output as well as editing of all the most commonly used parameters and recall of presets. Our D-Net Ethernet based control software for PC, Mac and iPad gives you the ability to not only control all the devices on a network but also to store preset memories and configure systems offline.

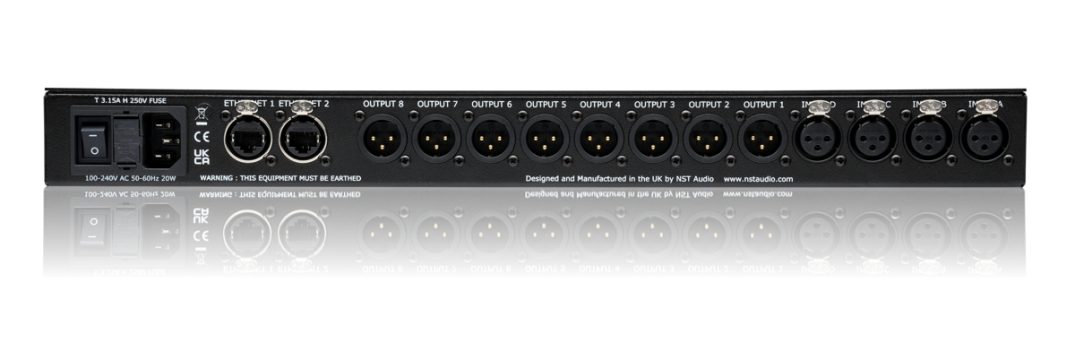

USB-C front panel connectivity with Ethernet bridging, means you can plug into any device and control the entire network. Additionally, a new Ethernet dual port switch in every unit means flexible connection options – either quick daisy chaining of devices or traditional star routing back to a dedicated external router/switch.
With enhanced audio performance thanks to the latest ESS AD/DA converter chipsets increasing the already impressive dynamic range and reducing THD+N figures, the D48X offers even more than ever before.
Analogue Inputs – 4
Electronically balanced, pin 2 hotCMRR : >60dB @ 1kHzMaximum Level : >20dBuInput Impedance : 10kΩ balanced
AES Inputs – 2 x 2 channel
Transformer balanced, pin 2 hotAES Input Sample Rates : 8kHz to 192kHzAES Input s/n Ratio : 139dBInput Impedance : 110Ω
Analogue Outputs – 8
Electronically balanced, pin 2 hotMaximum Level : >20dBuSource Impedance : <60Ω
AES Outputs – 4 x 2 channel
Transformer balanced, pin 2 hotSample Rate : same as operating sample rateSource Impedance : 110Ω
Performance
Frequency Response (12Hz to 32kHz) : +/-0.2dBDynamic Range : >119dB ‘A’ weighted (in to out analogue)THD + N (+19dB @ 1kHz) : 0.00029%Latency : 0.427ms (in to out, analogue)
Processing [96kHz]
Input Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phaseInput Delay (per channel) : 0 to 1.3s in 10.4uS stepsInput Compressor (per channel) : Threshold (-30 to +22 dBu), Attack, Release, Ratio, Soft-KneeInput Parametric EQ (per channel) : 8 bands – parametric, low shelf, high shelf, notch, band-passInput Graphic EQ (per channel) : 28 bandsInput Dynamic EQ (per channel) : 3 bands – parametric/low shelf/high shelf, boost/cut above/below, threshold, ratio, attack, releaseInput High-Pass Filter (per channel) : Up to 24dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Routing Inputs to Outputs : Choice of modes (Matrix Mixer, Free Routing, 1×8 crossover, 2×4 crossover, 4×2 crossover, 2×3 crossover + 2 Aux)
Output Parametric EQ (per channel) : 16 bands – parametric, low shelf, high shelf, notch, band-passOutput High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phaseOutput Delay (per channel) : 0 to 1.3s in 10.4uS stepsOutput Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option
Presets : Up to 30
Comms
2 x 1Gbps Ethernet on rear panel (Ethercon connector)USB Type C socket
Power Requirements
3-pin IEC input, fused90-250VAC, 50-60Hz < 20W
Dimensions
Height : 44mm (1.75inch) 1UDepth : 213mm (8.4 inches)Width : 482mm (19 inches)
Weight
Net : 2.5kgShipping : 3.5kg
Due to continuing product improvement the above specifications are subject to change.
....
